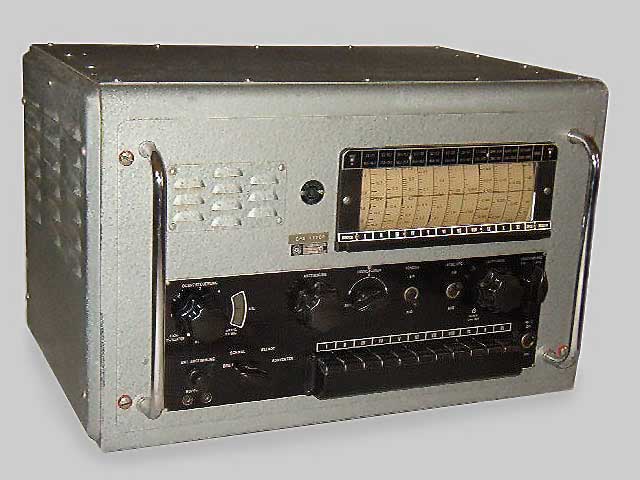

| HAGENUK UE 12 |
|
| General Coverage Communications Receiver |
| Double Conversion Superheterodyne |
| 11 Tubes + Semiconductors |
| Made in West Germany 1957 - 1971 |
| Specifications | |
| Coverage: | 95
- 200 / 190 - 405 / 380 - 840 / 800 - 1700 kHz
1.6 - 3.6 / 3.5 - 6.2 / 5.9 - 8.2 / 7.6 - 12.3 MHz 11.7 - 16.5 / 15.7 - 22.0 / 21.0 - 28.0 MHz |
| Modes: | AM/CW/MCW |
| Antenna Input: | HF 4/13 75 Ohm unbalanced |
| Sensitivity: | CW: 0.2 µV 6 dB S/N, AM: 2 µV 10 dB S/N |
| Setting & Read out: | <1000 Hz |
| Selectivity: | 5.6/1.4/0.3
kHz -6 dB.
Formfactor -6/-60 dB: 1:2.2 at 5.6 kHz bandwidth |
| IF: | 1st IF: 1522 kHz above 1.6 kHz, 2nd IF: 80 kHz |
| IF Rejection: | >60 dB |
| Image Rejection: | 90-60 dB 1.6-16.5 MHz, 60-50 dB 15.7 - 28.0 MHz |
| Audio Output: | 1 W, 600 Ohm line |
| Voltages: | 118/228 V +/-10% AC/DC, 70 W 110 VDC, 100 W 220 VAC |
| Physical: | Cabinet
Version: 570x400x430 mm, 40 kg
Rack Version: 520x304x330 mm |
| Accessories: | Hellfax BS 110 for Fax |
| Features | |||
| - Headphone Jack | - Speaker | - Speaker Switch | - Line Out 600 Ohms |
| - AF Filter | - BFO +/-2.5 kHz | - ANL | - AGC/MGC |
| - RF Gain | - Calibrator 100 kHz | - 2nd BFO +/-50 kHz | - Dial Lamps |
| - Two Tuning Speeds | - 1:64 Fine Tuning | - Five Fixed Pos. | - 500 kHz Preset |
| - Antenna Trimmer | - Rack Handles | ||
| Circuit Complement | |
| Tubes + Semiconductors: | 3x
UF 85 (=19 BY 7), 2x UCH 81(=19 D 8), 2x UBF 80 (=17 C 8),
2x UCC 85 (=26 AQ 8), 1x UCL 82 (=50 BM 8), 1x 108 C 1 (=0 B 2), selenium rectifiers |
| Tuning: | Three ganged capacitors in RF circuits, main tuning 10:1 and 64:1 via first oscillator continuously, above 1.6 MHz exact setting by using a calibrator and an additional oscillator 1472-1572 kHz as a BFO at first IF of 1522 kHz, 15 RF/IF circuits for HF, 12 RF/IF circuits for LF/MF |
| Crystal: | 1x 100 kHz for calibration, 1x 1602 kHz for second converter, 5x in additional oscillator for fixed channels |
| Dials: | Drum with 12 sections (one linear), fine tuning dial +/- 50 kHz |
| Comments |
| This model is a descendent from the single conversion superheterodyne UE 11(1953). The UE 12 was designed for the marine market and licensed as a class one receiver by the Deutsche Bundespost. A standard receiver like the competitor Siemens E 310 (= E 566) on German and Scandinavian ships. The eleven bands are selected by push-buttons. The tube currency is 0.1 A. |
| Variants |
| The common version includes a transformer in the cabinet. The UE 15 is similar but didn’t have the first LF-range. |
| Additional Information |
|

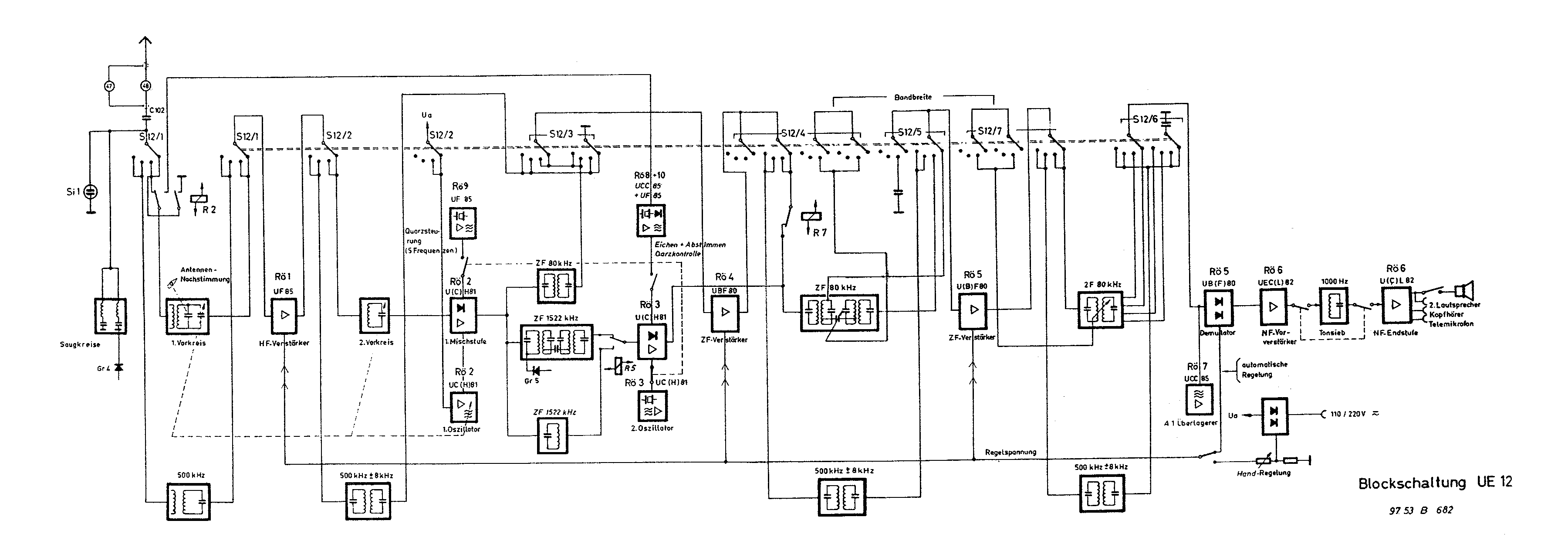

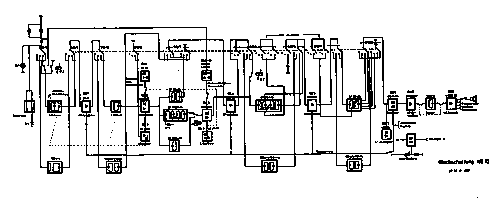

Block diagram of the UE 12 (click to enlarge).
|
|

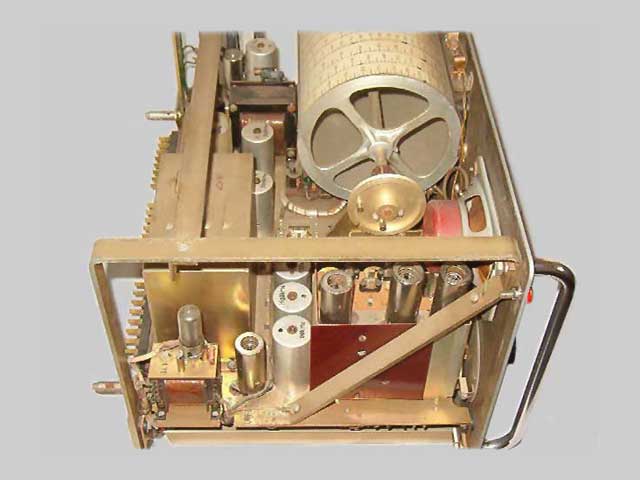

Top view of the UE 12.
|
|

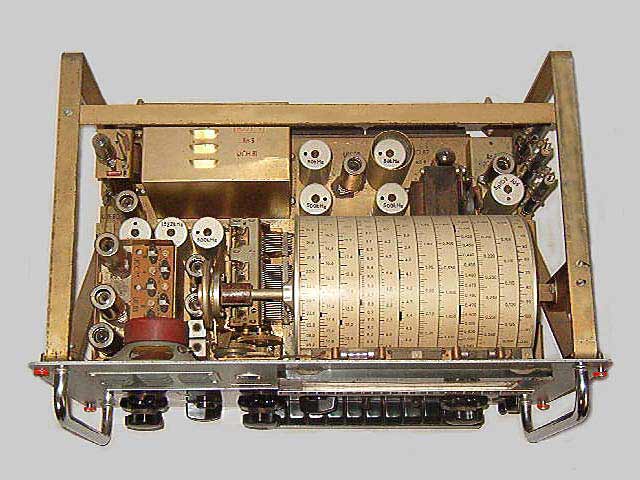

Some details from the inside: 1stIF unit on the left side, 500kHz filters in the middle, channel oscillator on the right side.
|
|

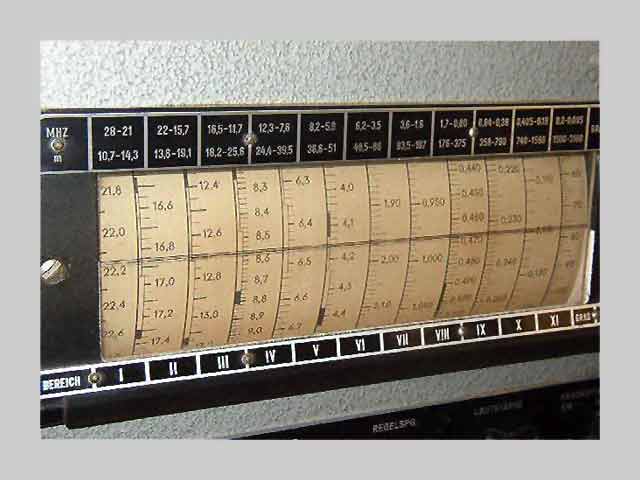

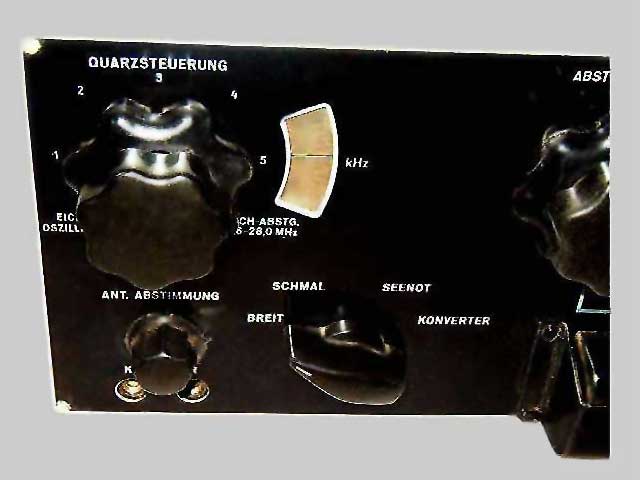

A detail of the front panel: the coarse tuning dial.
|
|
Another detail of the front panel: the fine tuning dial.
|
|

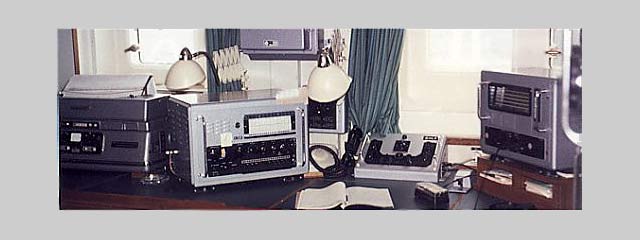

The UE 12 in use on board a ship (callsign DHLF).
|
