| Debeg E 566 |
|
| General Coverage Communications Receiver |
| Double Conversion Superheterodyne |
| 17 Tubes + Semiconductors |
| Made in West Germany 1956 - 1971 |
| Specifications | |
| Coverage: | 14
- 21 / 85 - 175 / 170 - 350 / 340 - 730 / 720 - 1540 kHz
1.5 - 3.1 / 3.1 - 6.3 / 6.0 - 10.2 / 9.7 - 15.2 / 14.7 - 20.2 MHz 19.7 - 25.2 / 24.7 - 30.2 MHz |
| Modes: | AM/CW/MCW |
| Antenna Input: | SO-239 75 Ohm unbalanced |
| Sensitivity: | CW: 0.3 µV 6 dB S/N, AM: 8 µV (LF-MF), 4 µV (HF) 10 dB S/N |
| Setting & Read out: | 500 Hz |
| Selectivity: | 6.2/2.4/1.8
kHz -6 dB.
14 - 21 kHz and 85 - 175 kHz ranges: 0.8 kHz -6 dB formfactor -6/-60 dB: 1:2.8 at 6.2 kHz bandwidth |
| IF: | 1st IF: 1080 - 1180 kHz, 2nd IF: 100 kHz |
| IF Rejection: | 50-70 dB, typically 70 dB |
| Image Rejection: | 40-80 dB |
| Audio Output: | 1.6 W/5000 Ohm, 600 Ohm line |
| Voltages: | 110/125/220/250 V AC +/-10% 40-60 Hz, 100 W |
| Physical: | Cabinet
Version: 550x350x380 mm, 35kg
Rack Version: 520x304x380 mm |
| Accessories: | FSE 2 or Teletron TG 440 for FSK, FSE 7 or Hellfax BS 110 for Fax |
| Features | |||
| - Headphone Jack | - Speaker | - Speaker Switch | - Line Out 600 Ohm |
| - BFO +/-3 kHz | - ANL | - AGC/MGC | - AGC 0.1/1sec. |
| - RF Gain | - Calibrator 100 kHz | - Dial Lamps | - Two Tuning Speeds |
| - Fine Tuning | - Break In Relay | - Semi Modular | - Rack Handles |
| Circuit Complement | |
| Tubes + Semiconductors: | 4x EF 93 (=6 BA 6), 3x EK 90 (=6 BE 6), 4x ECC 82 (=12 AU 7), 2x EAA 91 (=6 AL 5), 1x EL 90 (=6 AQ 5), 1x EM 34 (=6 CD 7), 1x 108 C 1 (=0 B 2), 1x 150 C 2 (=0A 2), selenium rectifiers in PS. |
| Tuning: | Three ganged capacitors in RF circuits, three ganged capacitors in 1st variable IF-circuits. Continuos tuning by a knob (transmission 10:1 pushed and 160:1 pulled) via 1st oscillator. Alternatively above 1.5 MHz exact setting of 1st oscillator in steps of 100 kHz with calibrator for RF conversion to variable 1st IF (1180 to 1080 kHz), fine tuning via 2nd oscillator (1280 to 1180 kHz) for further conversion to 2nd IF (100 kHz). |
| Crystal: | 1x 100 kHz for calibration. |
| Dials: | Very big colorful coarse dial, first segment is fine tuning dial 100 kHz. |
| Comments |
| This model was designed for the marine market replacing the E 61, E 66a (LF, HF, 1948), E 303, E 305 and E 306 (all HF, 1952 - 1954) receivers. The E 566 was licensed as a class one receiver by the "Deutsche Bundespost". A standard receiver like competitor Hagenuk UE 12 on German ships. The twelve bands are selected by push-buttons on the left. Called "parrot cage" by the operators, referring to its colorful dial. Quite suitable for SSB reception using the product detector at 1.8 kHz bandwidth in CW mode. |
| Variants |
| The Debeg E 566 has been produced by Siemens. It is very similar to the Siemens E 310. The E 566 first had a dark green cabinet and front panel, later it often was light gray. The headphone jack can be positioned underneath the main tuning knob or on the far left. |
| Additional Information |
|

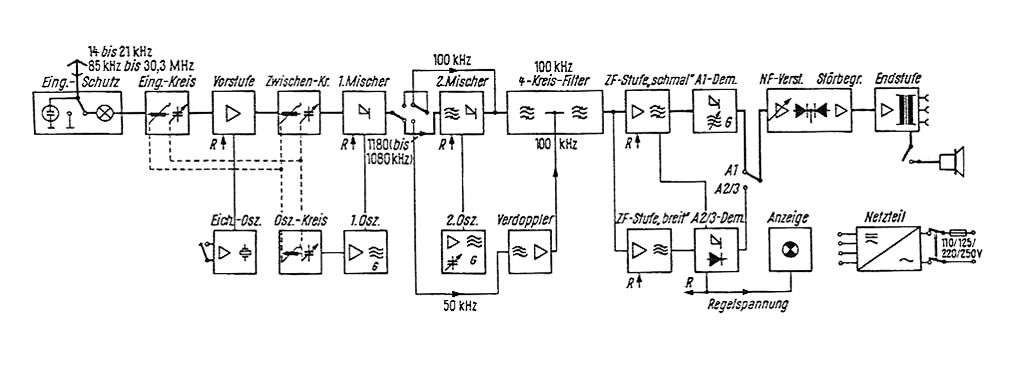

Block diagram of the E 566 (click to enlarge).
|
|

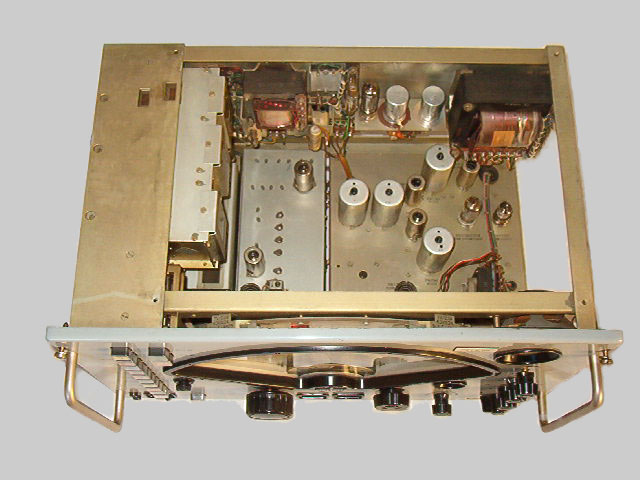

Top view of the E 566. The RF coil and capacitor deck is on the left hand side behind the push buttons.  |
|

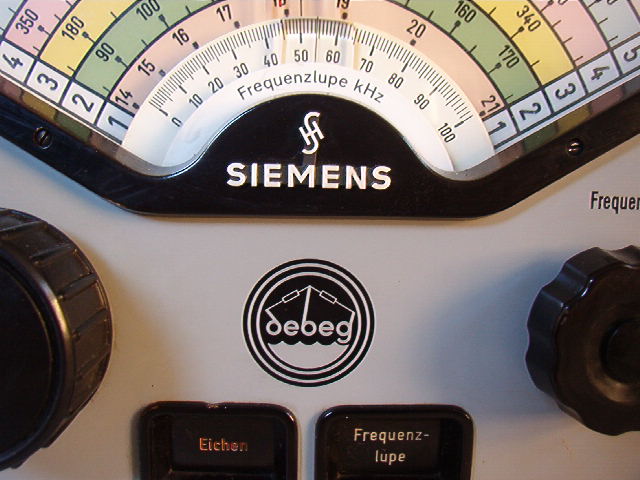

A detail of the front panell: the coarse and fine tuning dials.
|
|

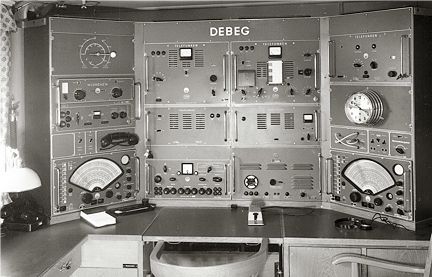

2 x E 566 in use on bord a freighter (callsign DALN).
|
|
The E 566 was in use on bord the MS "Ockenfels" (DLCD) as well.
|
